Dry laying

The strength of the 20 mm-thick tiles means users can lay them directly onto the laying bed without gluing. This technique is particularly versatile and can be used with most common outdoor laying beds, such as grass, gravel, and sand. The elegance of the K2 slabs means users can create stylish designs in both homes and public spaces, quickly and easily, without the need for specialist fitters.

Advantages

  • Quick and easy laying
  • Can be changed at any time
  • Reusable and replaceable
  • Excellent water runoff
  • No specialist fitters required
  • No adhesive costs
  • Fewer costs and quicker laying
  • Ready for use right away

Recommended locations

  • Private gardens
  • Patios
  • Walkways
  • Street furnishing
  • Public parks
  • Retail and catering premises with
    outdoor areas
  • Private beaches: decking and walkways
Dry laying ON GRASS

Dry laying ON GRASS

Where there are lawns, be they in public areas or private homes, the tiles must be dry laid on top of this grass without using any building adhesives.
This allows users to change the paving at any time, reusing the same material several times.
Dry-laying does not require specialist fitters and the tiling is ready for use as soon as the job is finished.

Data sheet - Dry laying on grass

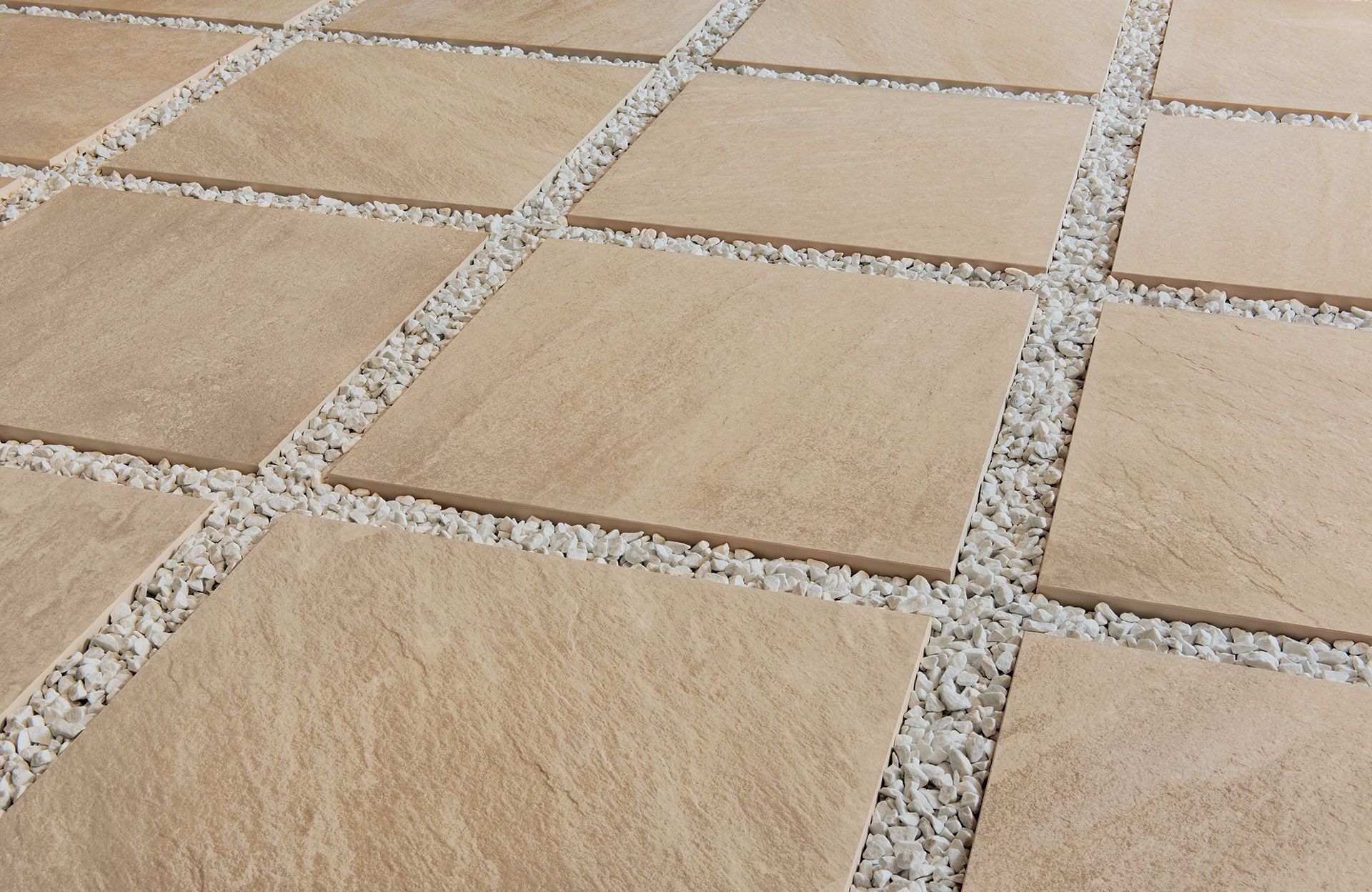

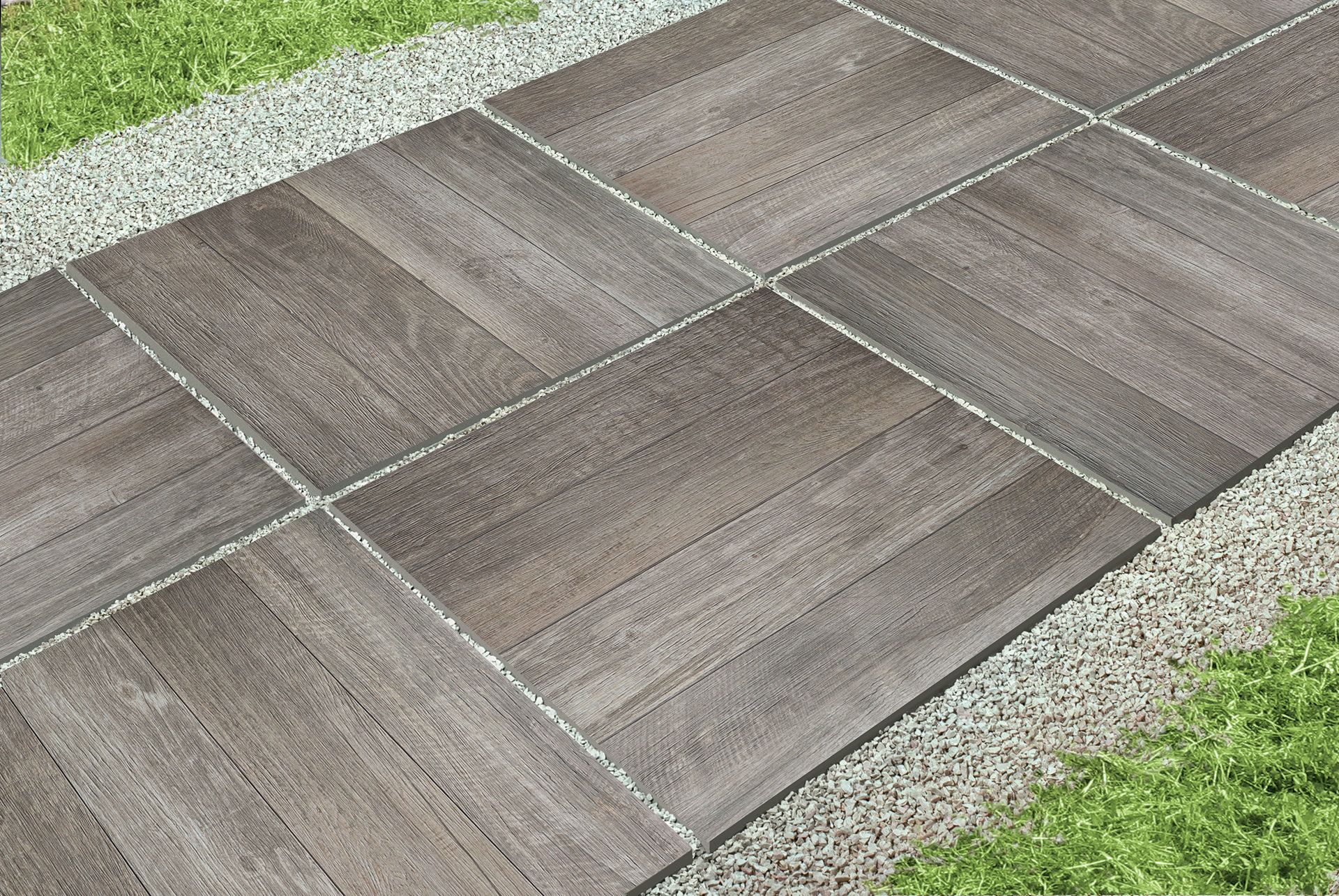

Dry laying ON GRAVEL

Dry laying ON GRAVEL

Apart from the attractive decorative effects that can be created, this system is particularly recommended in areas where drainage of the water in the underlying soil is a problem, and also for cement or concrete laying beds, such as on balconies or terraces.
The tiles can be laid dry by simply placing them on top of the previously prepared gravel base, without the need for building adhesives.
This means the tiling is easily levelled out on top of the gravel and is ready for use immediately afterwards.

Data sheet - Dry laying on gravel
Data sheet - Dry laying on sand

Data sheet - Dry laying on sand

The tiles can be laid dry by simply placing them in the desired position, without the need for building adhesives.
This means the tiling is easily levelled out on top of the gravel and is ready for use immediately afterwards.
This method does not require specialist fitters and allows users to change the paving at any time or reuse the same material several times, even in different locations.

Data sheet - Dry laying on sand

Laying on screed with adhesive

The advanced technical features of the 2 cm-thick K2 collections, combined with an adhesive laying technique in screed, allow users to create perfectly stable and exceptionally hard-wearing surfaces. The K2 slabs used with this solution can withstand both moving and parked vehicles.
Ideal for heavily frequented city areas, in particular for squares, pavements, or cycle paths.

ADVANTAGES

  • Maximum stability over time.
  • Ideal for areas open to vehicle traffic.
  • Ideal for areas frequented by large numbers of pedestrians.

RECOMMENDEND LOCATIONS

  • Courtyards.
  • Arcades/porches.
  • Terraces/balconies.
  • Access ramps.
  • Garages, car parks.
  • Short-stay sites for vehicles.
  • Cycle paths.
  • Walkways
  • Pavements.
  • Squares.

Raised laying with support

K2 porcelain stoneware slabs can be used in conjunction with a support framework consisting of polypropylene bearing struts.
The support is fully adjustable and allows the creation, on any substrate, of raised floors, allowing for the installation of electrical and water systems in the cavity below.

For a correct use read the warnings.

ADVANTAGES

  • No levelling problems.
  • Allows wiring and piping to be housed.
  • Easy to inspect.
  • Excellent water drainage.
  • Withstands thermal expansion.
  • Better heating and sound insulation.
  • Adhesive-free system.
  • Fewer costs and quicker installation.
  • Reusable and replaceable.
  • Significantly lighter load as no screed required.

RECOMMENDEND LOCATIONS

  • Patios.
  • Gazebos.
  • Service facilities in businesses and public buildings.

K2 GRID

SYSTEM FOR RAISED FLOORS FOR USE OUTDOORS.

An innovative and practical laying system for use with raised floors.

The system comprises a polypropylene support frame which holds the K2 porcelain stoneware tiles produced by Ceramiche Keope and heightadjustable pedestals.
This means that different sized tiles can be laid together, with the utmost safety standards and without the need for any reinforcement on the back of the slabs.
Since the tiles can be shaped during laying, the system is easy to fit and suitable for any laying design. The height-adjustable pedestals also ensure perfectly flat surfaces.

ADVANTAGES

  • Fast to fit and remove
  • Stability and safety of the floor’s surface
  • Height adjustable supports from 50 to 300mm for perfectly flat surfaces
  • Multi-size laying patterns
  • Resistant to thermal shock (-20 °C / +60 °C) and atmospheric agents
  • Resistant to loads without any reinforcement on the back of the slabs
  • Resistant to acids and alkali
  • Support made from 100% recycled material

K-deck

Living and reinventing outdoor spaces with Keope porcelain tiles: this is K Deck, the innovative raised installation system that exploits the simplicity of the decking system for installing 2-cm thick planks and slabs.

A simple and economical system, which is particularly suitable for commercial and residential outdoor spaces because it is easy to clean and, thanks to the possibility of lifting the slabs at any time, makes it possible to inspect the systems and pipes that may be present in the substrate.

The system consists of: adjustable modular supports that can reach a maximum height of 30
cm; aluminium joists for safe installation of the material; anti-noise rubber sheath to be applied to the aluminium joists. The structure can also be closed laterally, creating a vertical covering,
with the help of special clips.

The K Deck system can only be applied to 2-cm thick K2 porcelain tiles fitted with the double
reinforcing fibre glass mesh.
